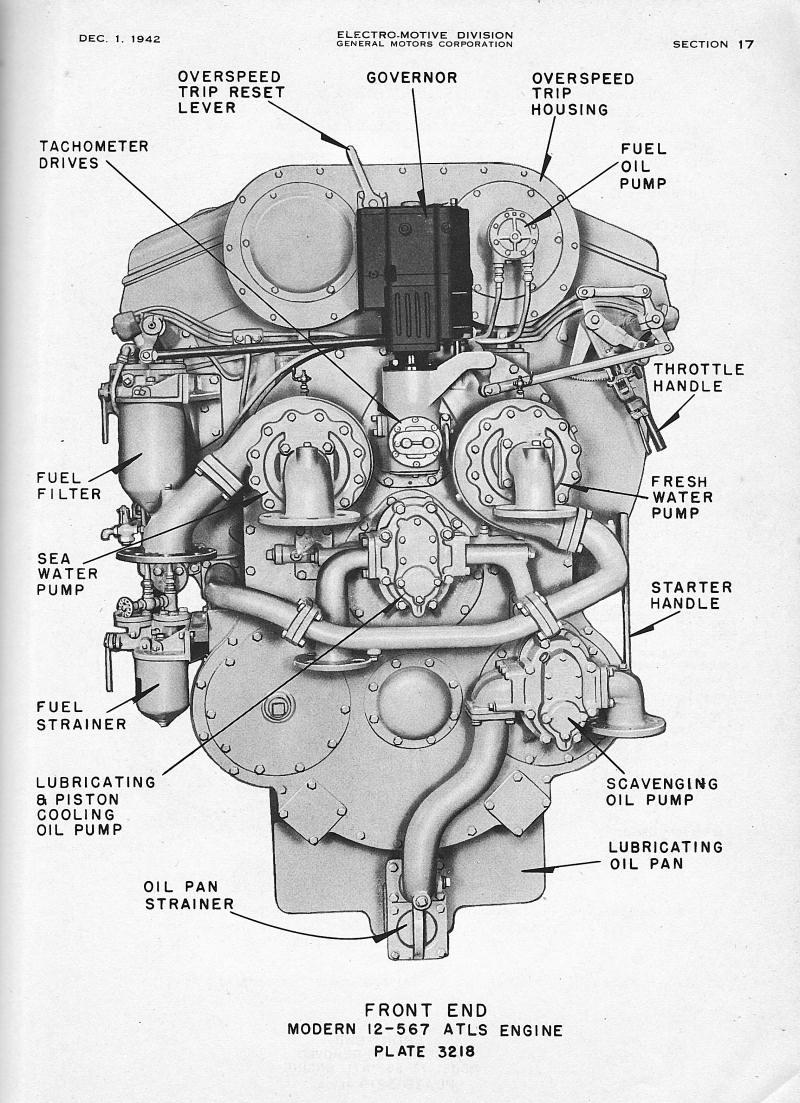

GM 12-567 Diesel Front End

Illustrations of LST engines from the 1942 manual - the camshaft gear train, side drawings of the cylinder head and looking down on top of the cylinder head to show the camshaft, injector and gear for operating valves and the injector.
6800 cubic inches
